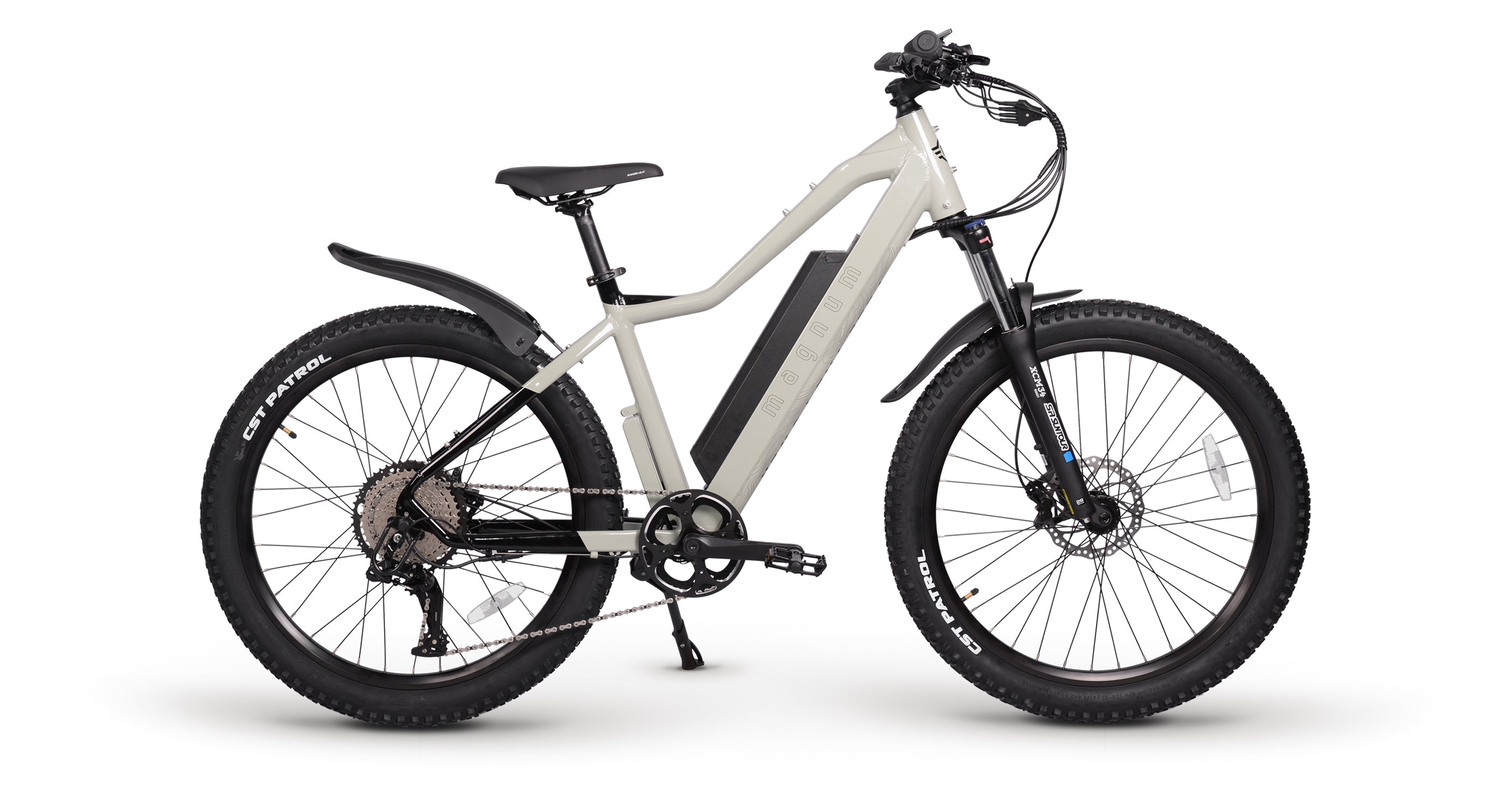

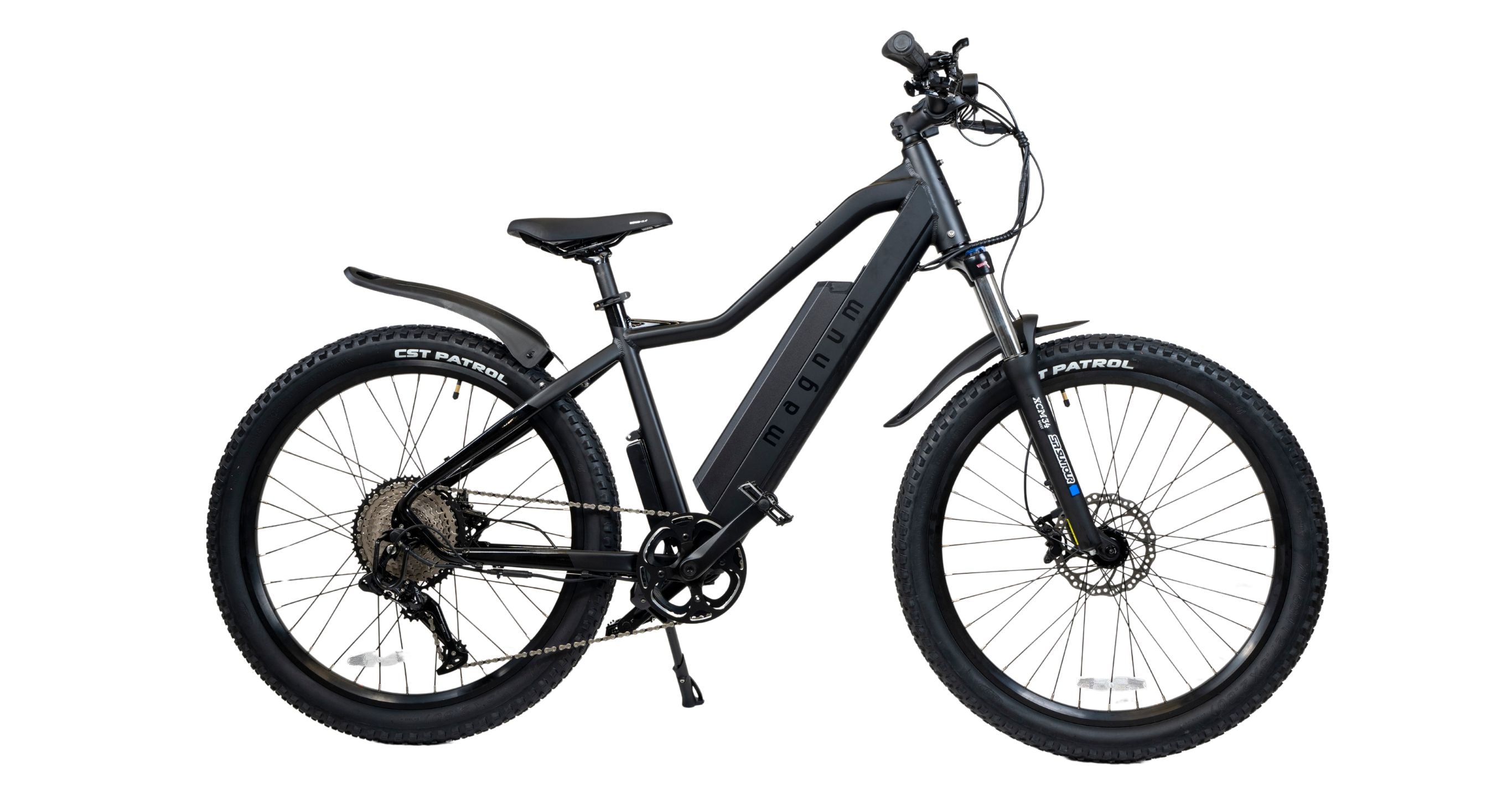

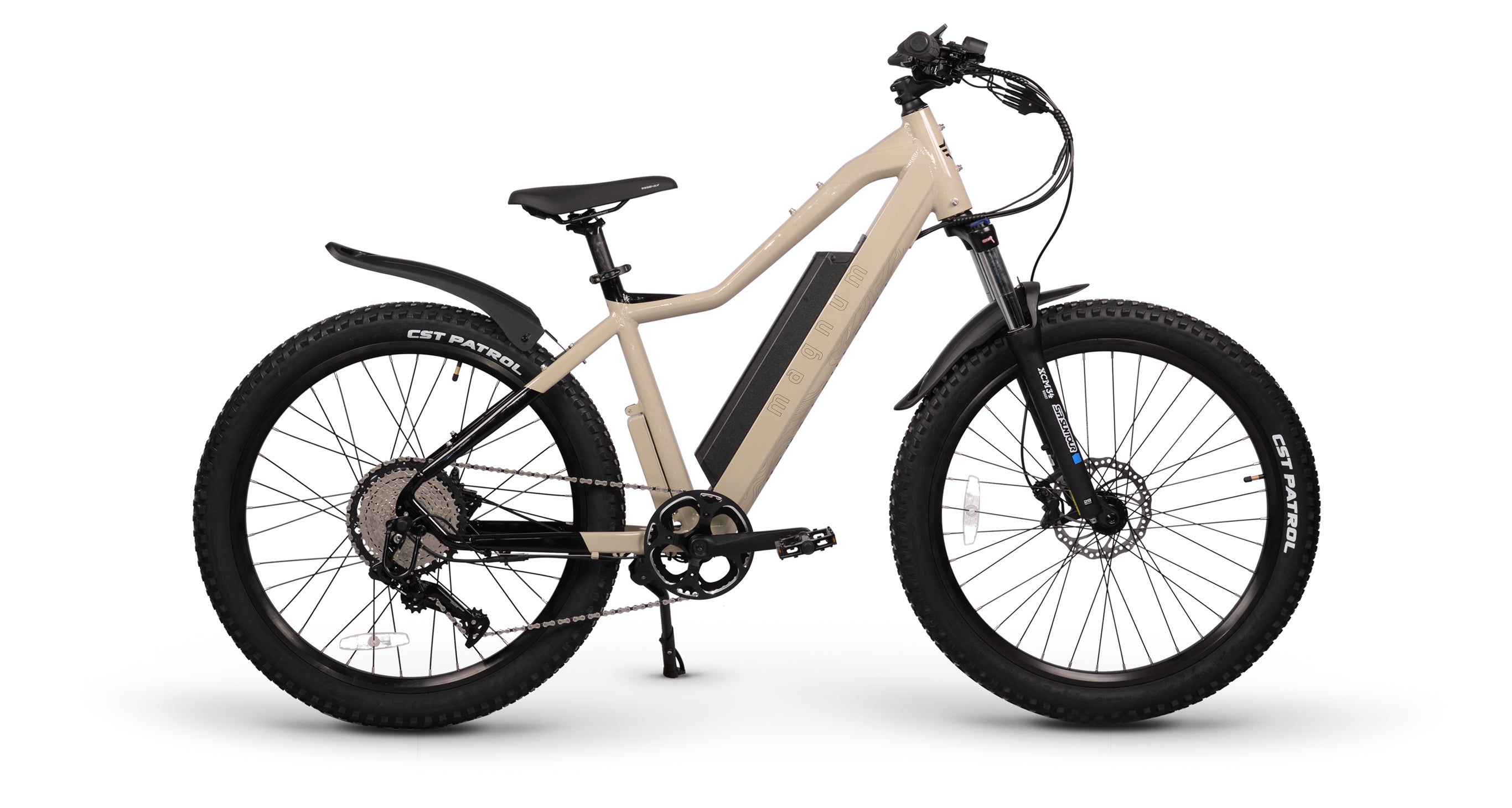

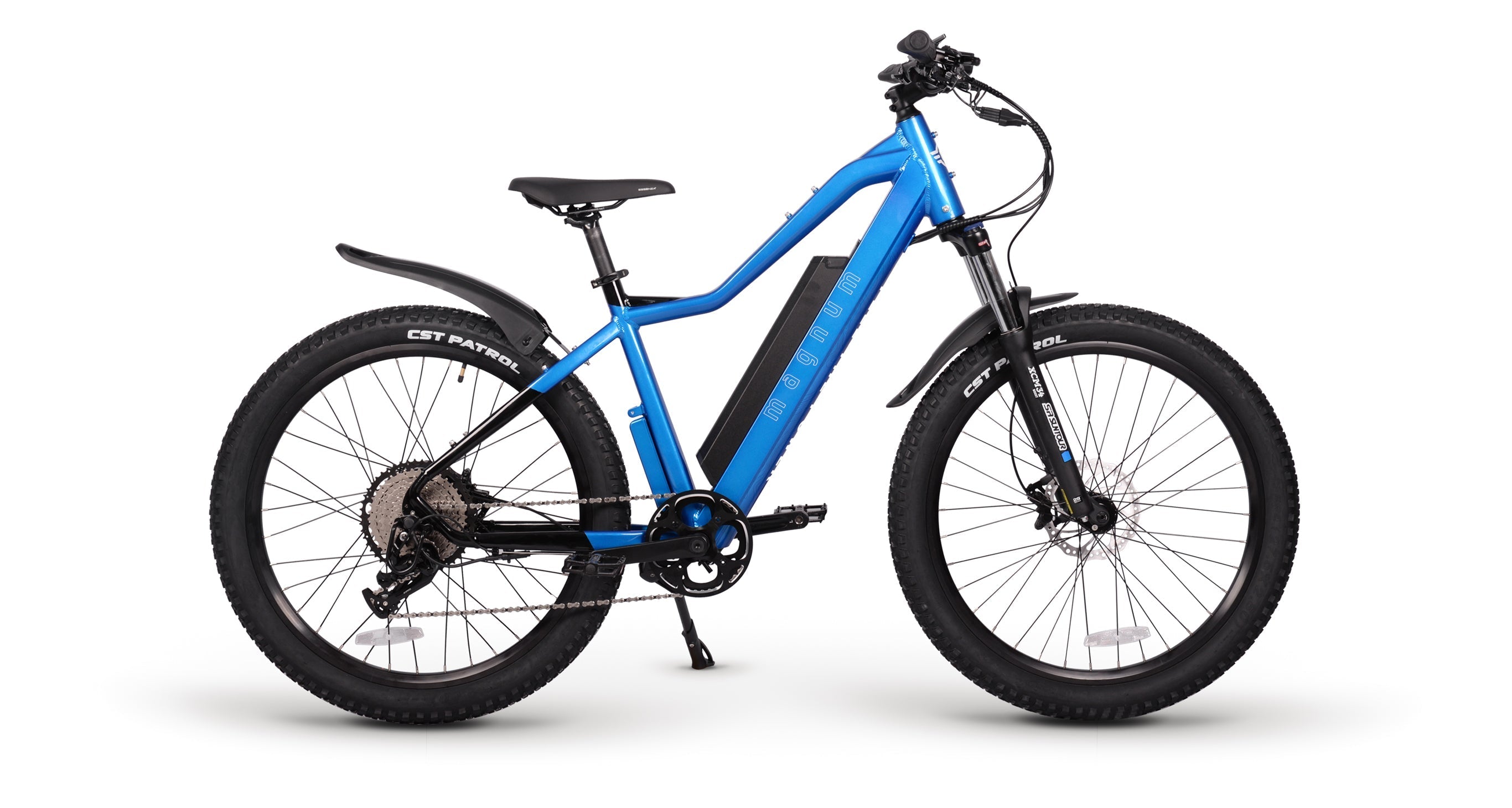

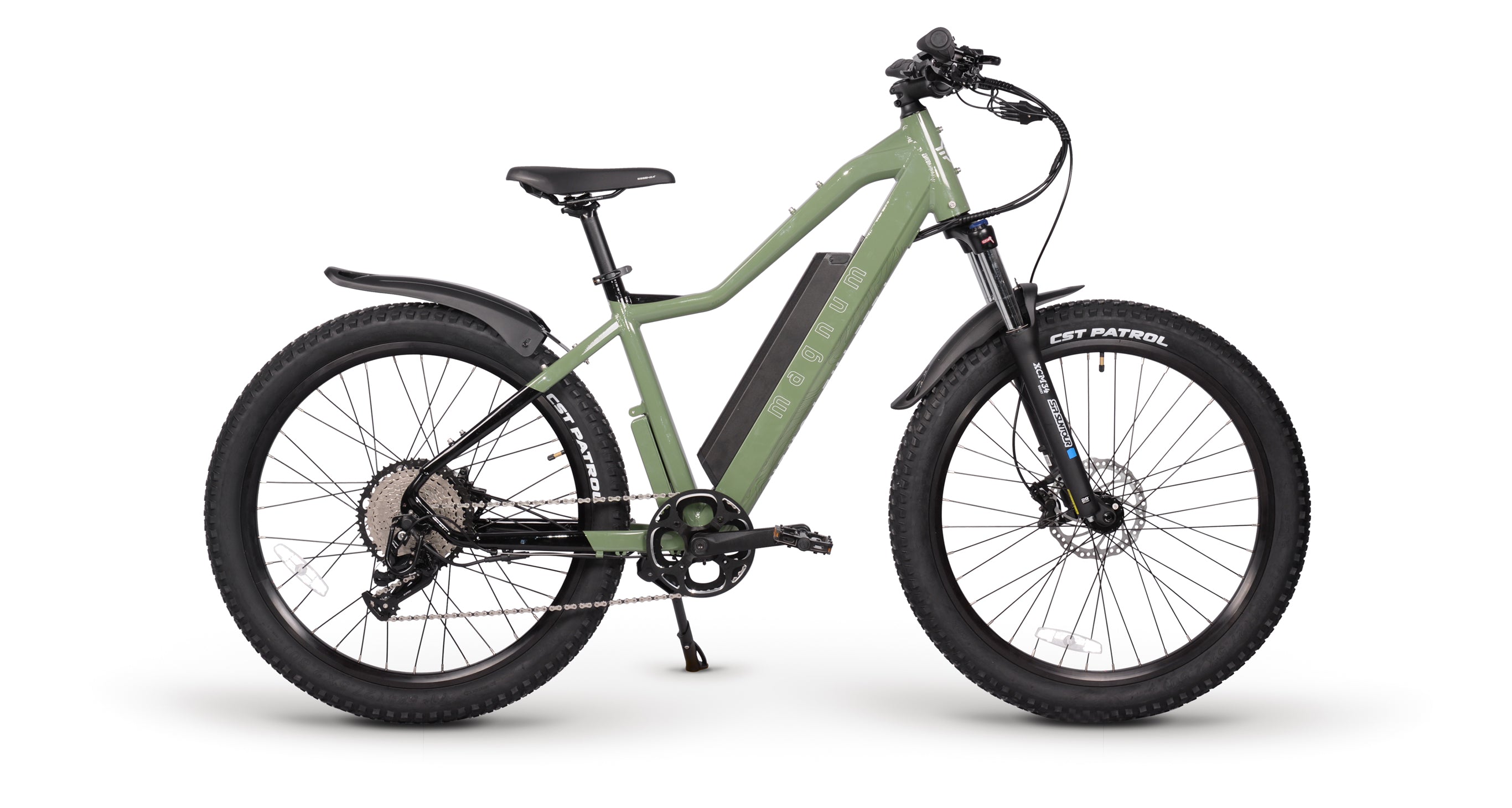

The Magnum Peak T5
The Peak T5 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train and a robust power system make the Peak T5 an ideal choice for trail riding.
Motor Brand
BafangMotor Type
Rear Hub-DriveMotor Nominal Output
500 WattsMotor Peak Output

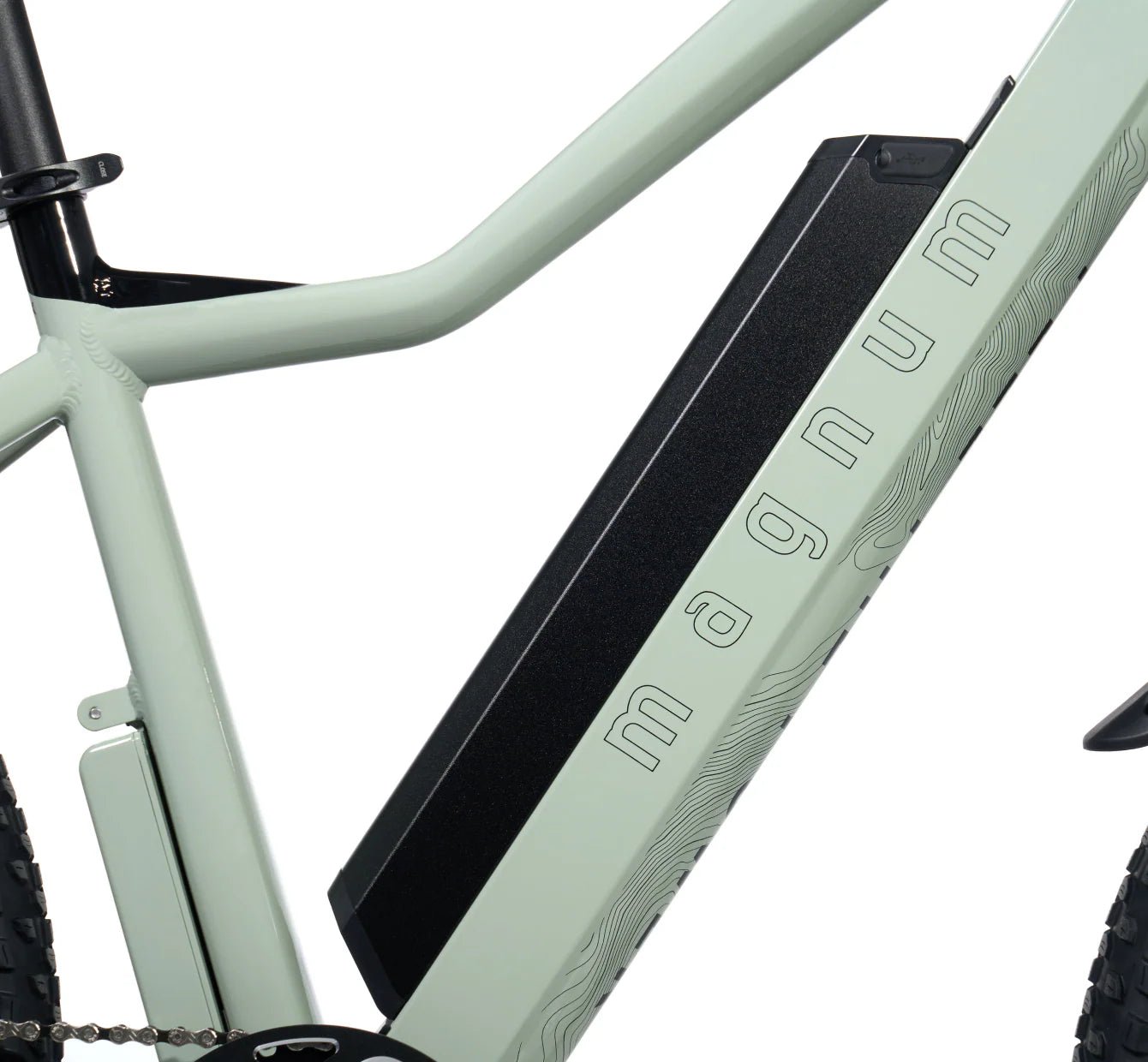

750 WattsBattery Voltage
48 VoltsBattery Ah
15AhBattery Wh
720WhBattery Chemistry
Li-NMC, UL2271 & UL2849 CertifiedBattery Charge Time (from empty)
7.5 HoursMinimum Range
30 Miles (48 Kilometers)Maximum Range
50 miles (80 Kilometers)Display Type
Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCDDisplay Readouts
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip TimeDrive Mode
Torque Sensor Pedal Assist, Trigger Throttle, Walk ModeTop Speed
25 mph with Pedal Assist, 20 mph with ThrottleLights
Front light controlled from the display. Rear light brake activated. Front Light: 40 lux, Rear Light: 20 lux (Rear light not included)Frame material
Aluminum AlloyFrame Type
Fork Details

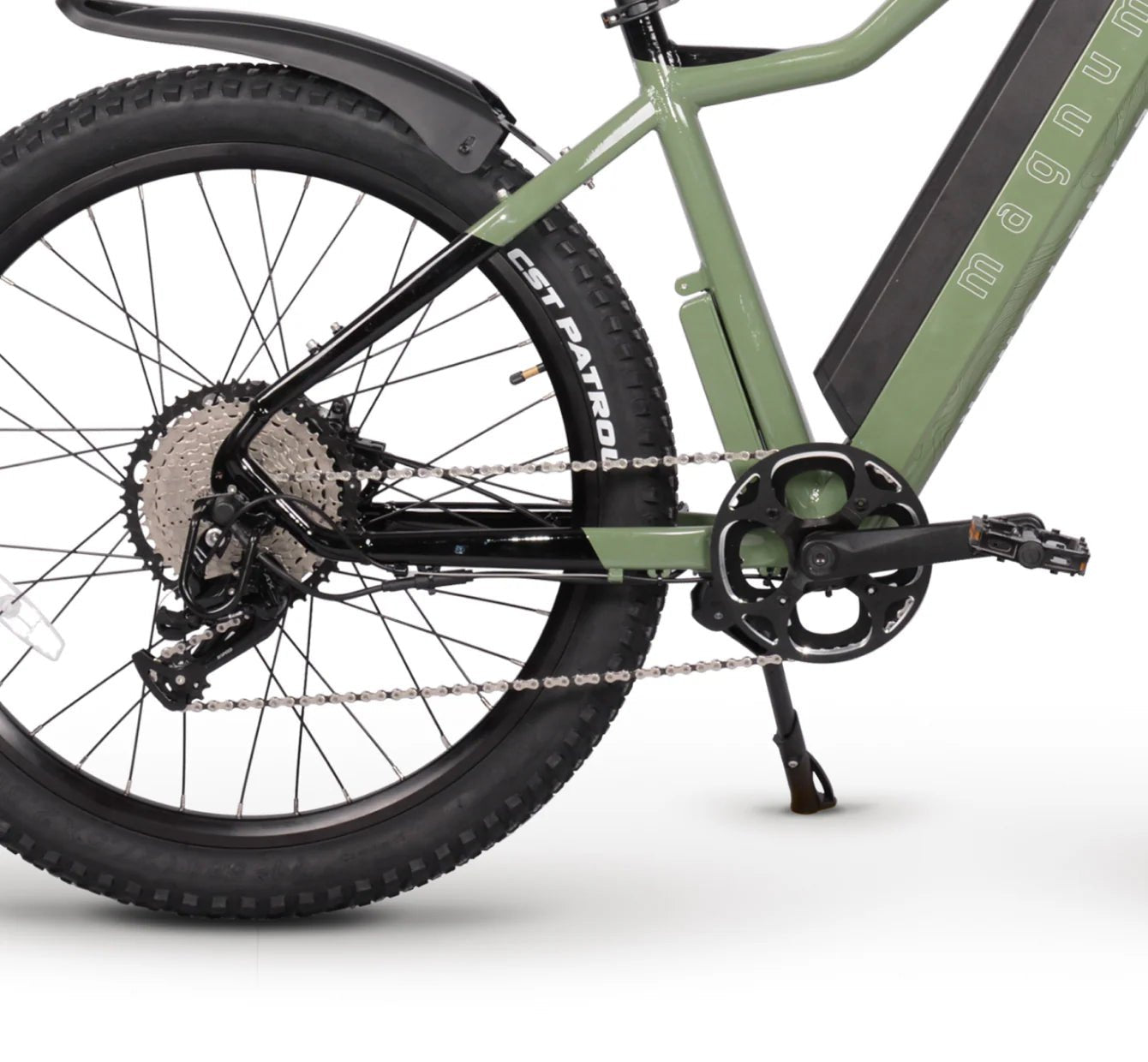

XCM34-BoostGearing details
A11-X 11-SpeedShifter Details
A11-X 11-SpeedCrank
Aluminum Alloy, 42T, 170mmPedals
WellgoStem
Magnum 60mmBrakes
Logan Hydraulic Disc BrakesGrips
BlackSaddle
Selle Royal Essenza+Tire Brand
CST Patrol 27.5 x 2.8Wheel size
27.5”Fenders
Front and Rear IncludedChain

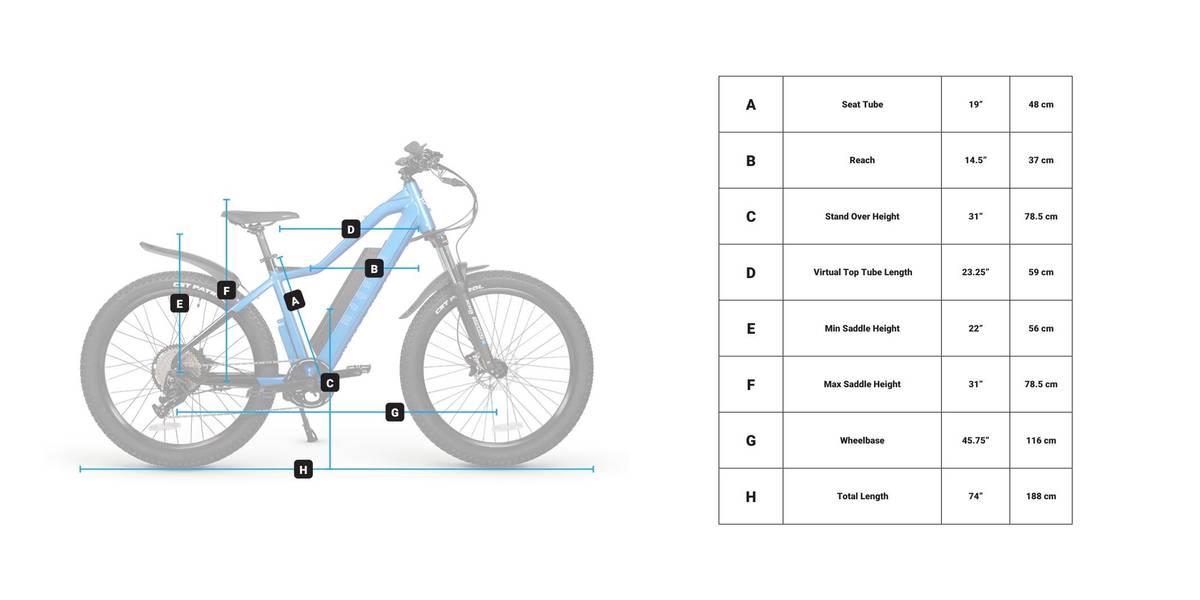

KMC 11-SpeedSeat Tube
19” (48 cm)Reach
14.5” (37 cm)Stand Over Height
31” (78.5 cm)Virtual Top Tube Length
23.25” (59 cm)Min Saddle Height
22” (56 cm)Max Saddle Height
31” (78.5 cm)Width
28.75” (73 cm)Wheelbase
45.75” (116 cm)Length
74” (188 cm)Total Weight
60 lbs (27.25 kg)Battery Weight
9 lbs (4.1 kg)Recommended Minimum Rider Height
5’6”Max Load Capacity
330 lbs. (150 kg)
Kickstand
Center-Mounted Single Side KickstandBell
N/ACharger
48 V / 2 AFront Rack
Optional Front Rack (Not Included)Rear Rack
Optional (not included)Fenders
Front and Rear IncludedAccessory Mounts
Top Tube Mounts, Head Tube Mounts, Rear Rack Mounts
