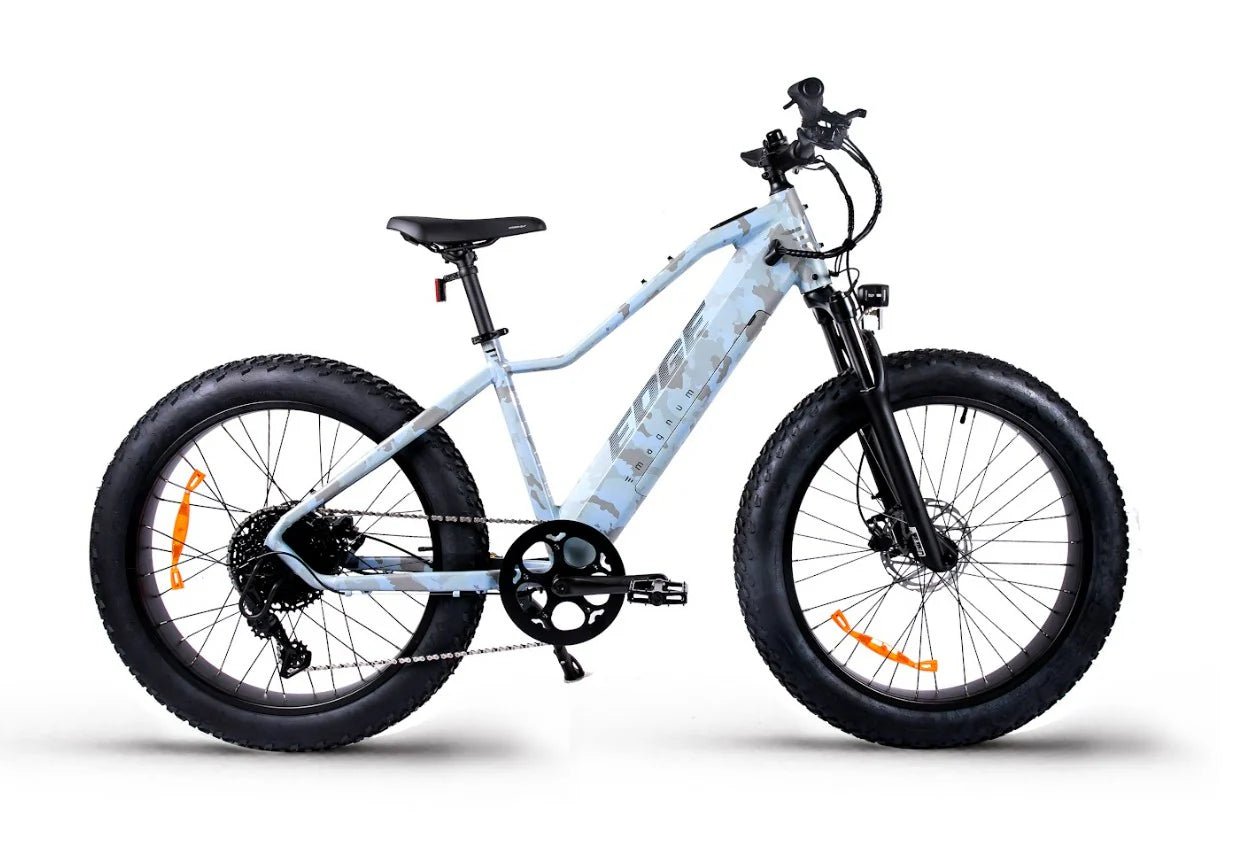

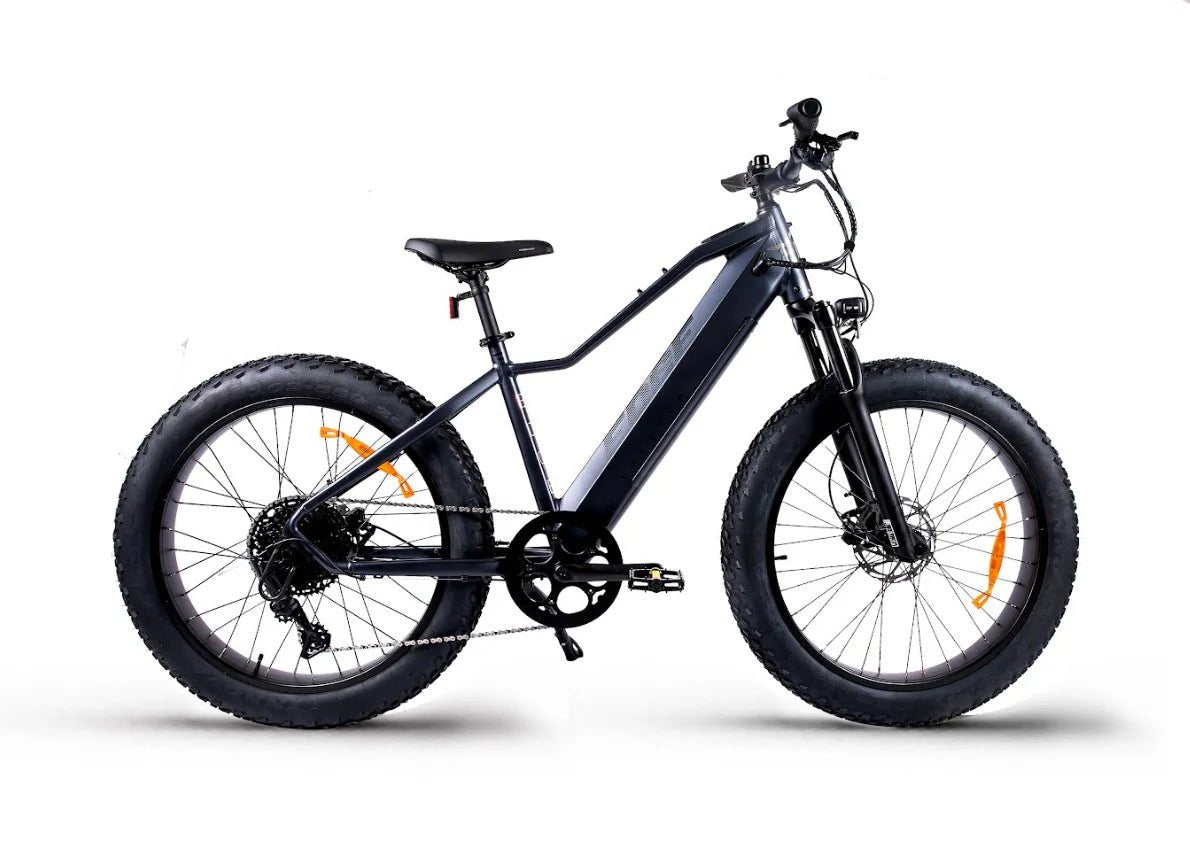

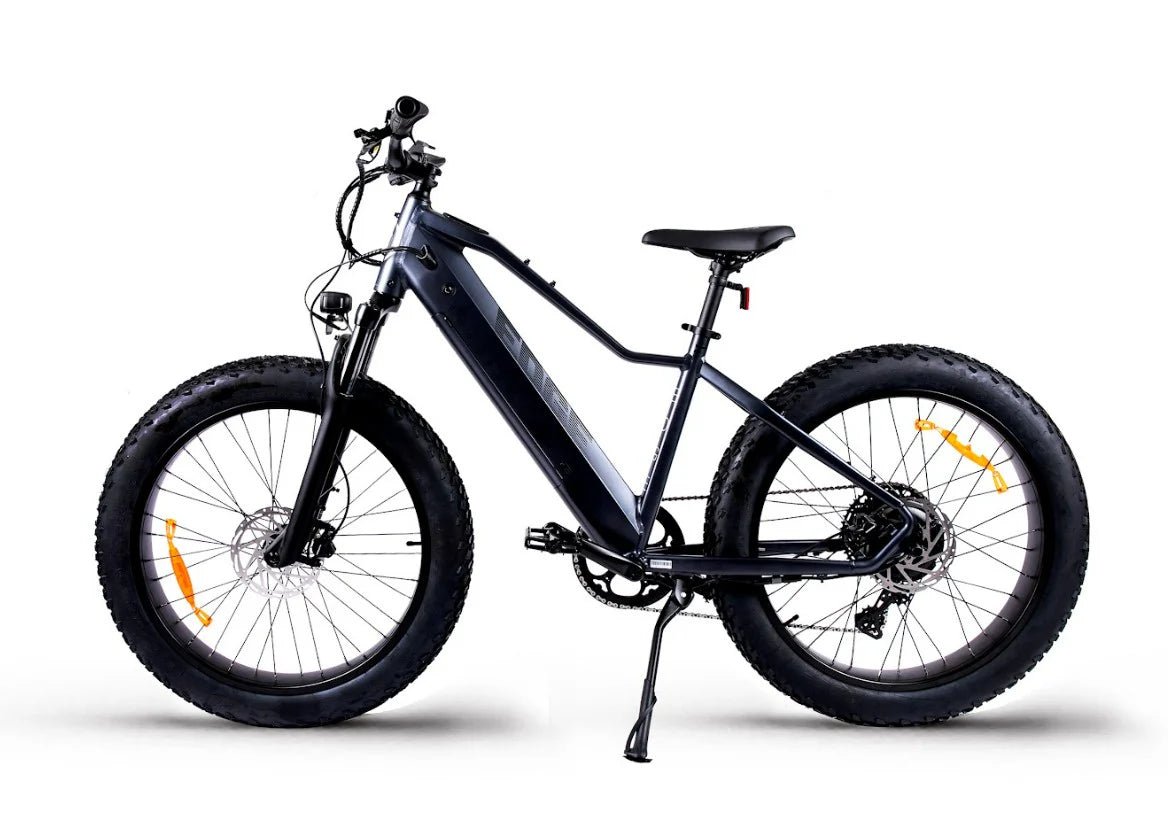

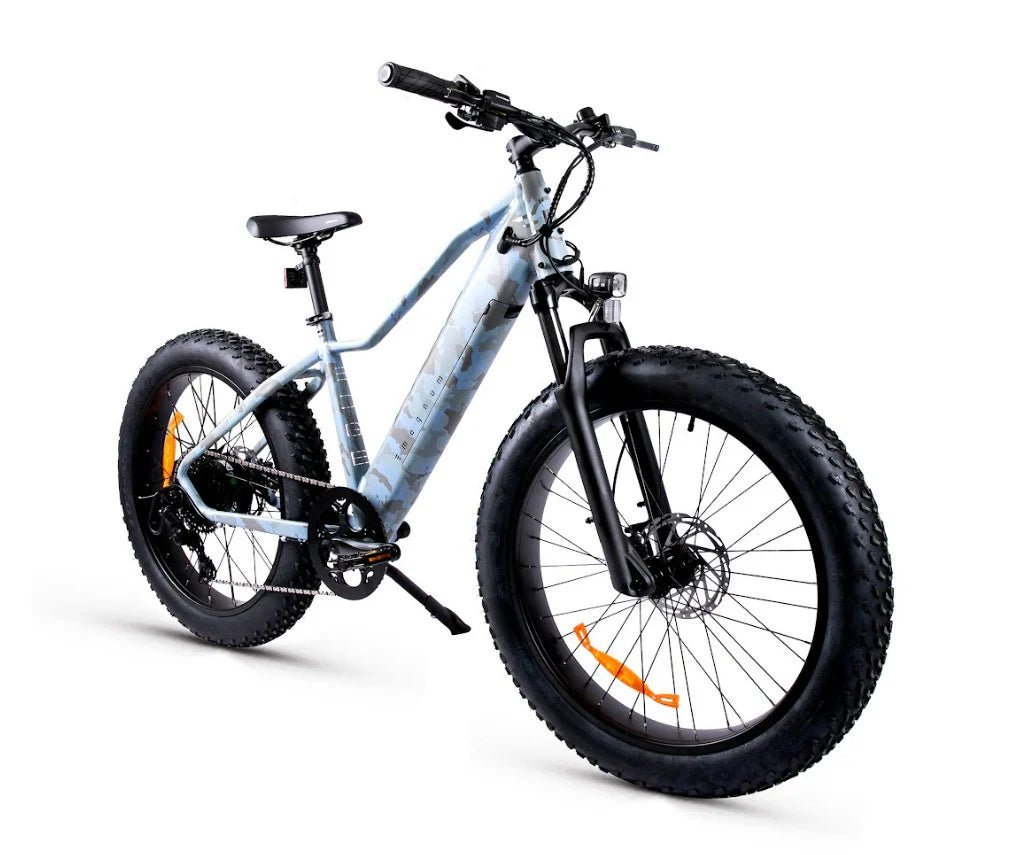

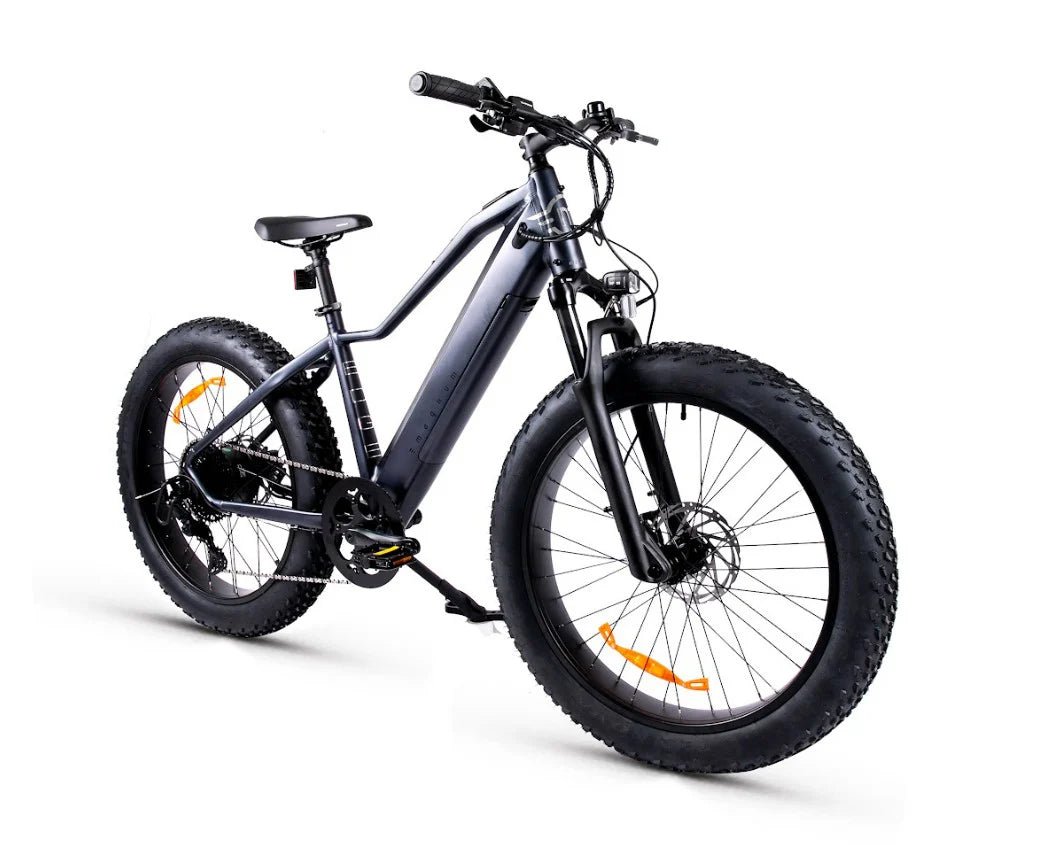

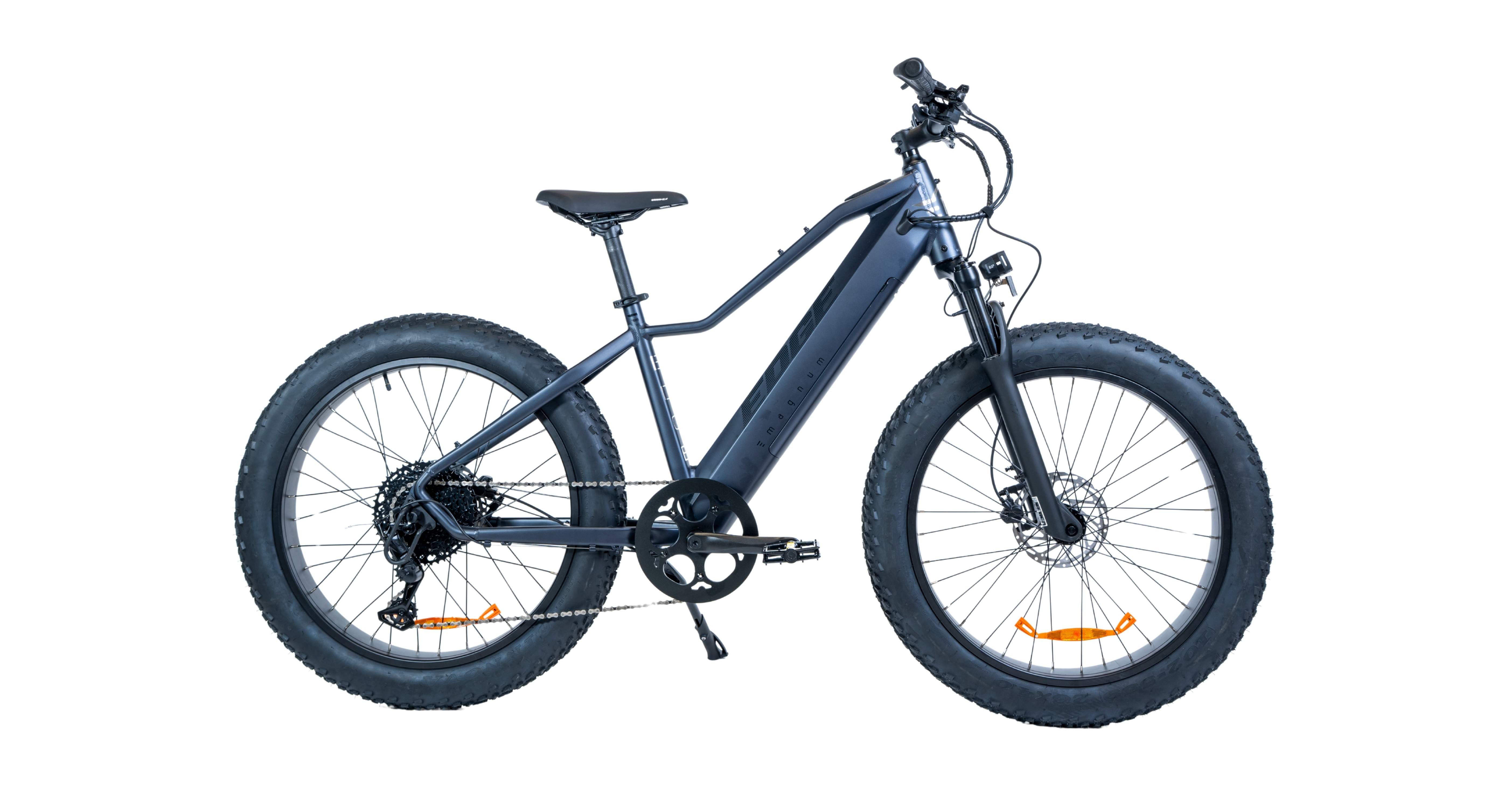

Magnum Edge – Graphite (48V 15Ah)
The Magnum Edge is a high-performance, fat-tire electric bike built for riders who crave power, stability, and adventure. Engineered for both rugged off-road terrain and smooth urban commutes, the Edge delivers exceptional versatility and control.
Equipped with a 48V 15Ah battery and a powerful 500W motor, it offers strong acceleration, long-range capability, and the confidence to tackle any environment. Its bold Graphite finish, durable frame, and precision components combine to create a bike that’s as tough as it is stylish.
Whether you’re conquering trails, sand, snow, or city streets, the Magnum Edge delivers a ride that’s powerful, reliable, and ready for anything.
Motor Brand
SuttoMotor Type
Hub-Drive; brushless; planetary gearedMotor Nominal Output
750 WattsMotor Peak Output
1,000 WattsBattery Voltage
48 VoltsBattery Ah
15AhBattery Wh
720WhBattery Chemistry
Samsung 21700, Li-NMC, UL2271 & UL2849 CertifiedBattery Charge Time (from empty)
6.5 HoursMinimum Range
15 Miles (24 Kilometers)Maximum Range
50 miles (80 Kilometers)Display Type

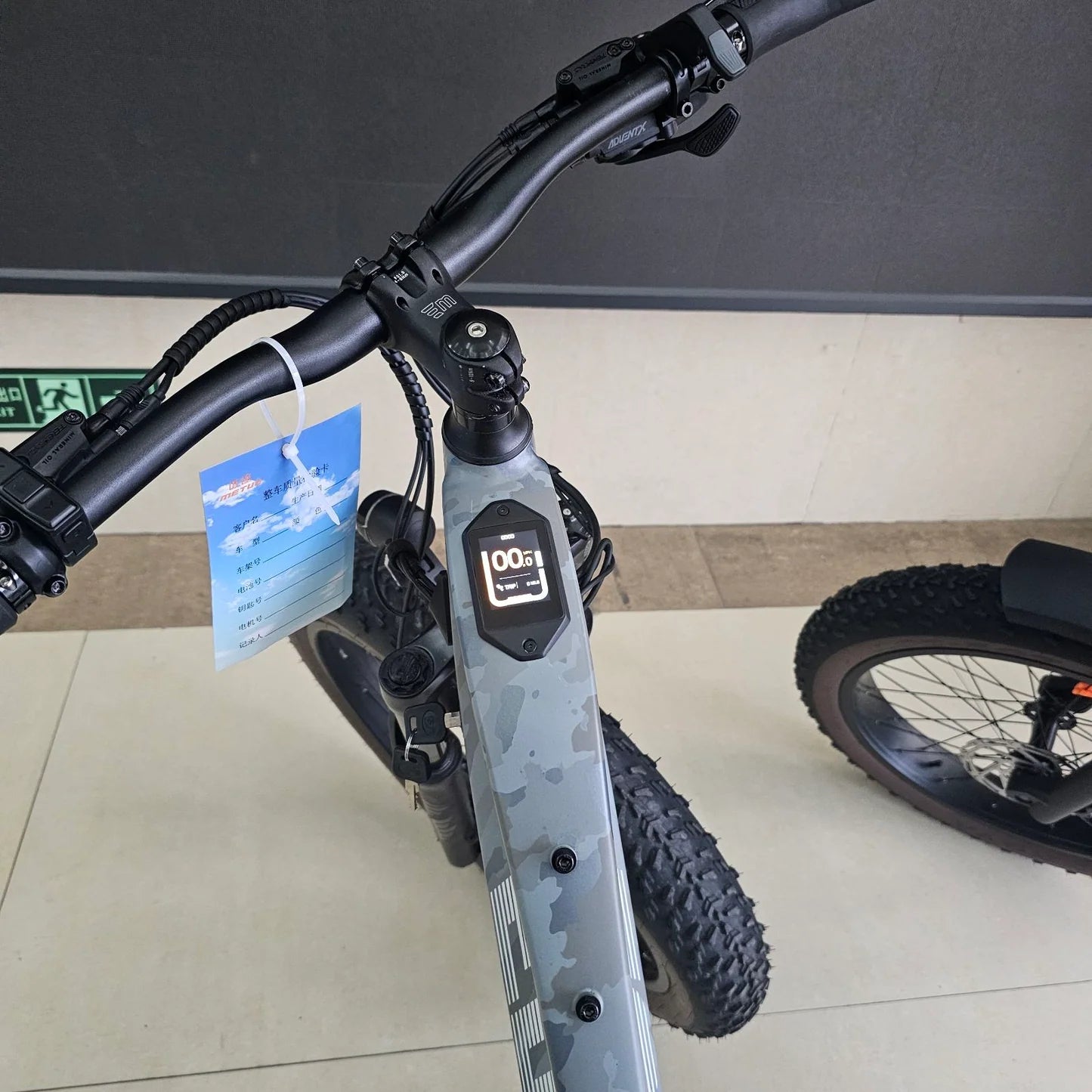

VeloFox Frame-Integrated Color DisplayDisplay Readouts
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time, 24hr clockDrive Mode
Torque Sensor Pedal Assist, Thumb Throttle, Walk ModeTop Speed
Up to 28 mph with Pedal Assist, 20 mph with ThrottleLights
Integrated 80 lumen front light and optional rear light (mounts to optional rear rack)
Frame material
Aluminum AlloyFrame Type
High-step, Integrated top tube display, integrated battery, one- size- fits- most fat tire mountain frameFork Details
FAT-34mm x 26inch wheel, thru-axle, 100mm travel, w/ lock outGearing details
Microshift Advent X 10 speedShifter Details
Microshift Advent X 10 speedCrank
Aluminum Alloy 170mmPedals
Wide alloy Platform with ReflectorsStem
Magnum alloy 60mm length, 31.6mmBrakes
Tektro Hydraulic 180mm rotorsGrips
Lock-on ergonomic MTBSaddle
Selle Royal Essenza +Seat Tube
19” (48 cm)Reach
16.5” (42 cm)Stand Over Height
29” (74 cm)Virtual Top Tube Length
25” (64 cm)Min Saddle Height
34” (86 cm)Max Saddle Height
41” (104 cm)Width
28.75” (73 cm)Wheelbase
47” (119 cm)Length
75” (190 cm)Total Weight
80 lbs (36 kg)Battery Weight
9.3 lbs ( kg)Recommended Minimum Rider Height
5’4”Max Load Capacity
330 lbs. (150 kg)Kickstand
Center-Mounted Single Side Adjustable LengthBell
Bell with AirTag/M-Tag compatibility (tracking device sold separately)Charger
54.6V 2A ChargerFront Rack
Compatible with Magnum Multi-Purpose Cargo Basket (basket sold separately)Rear Rack

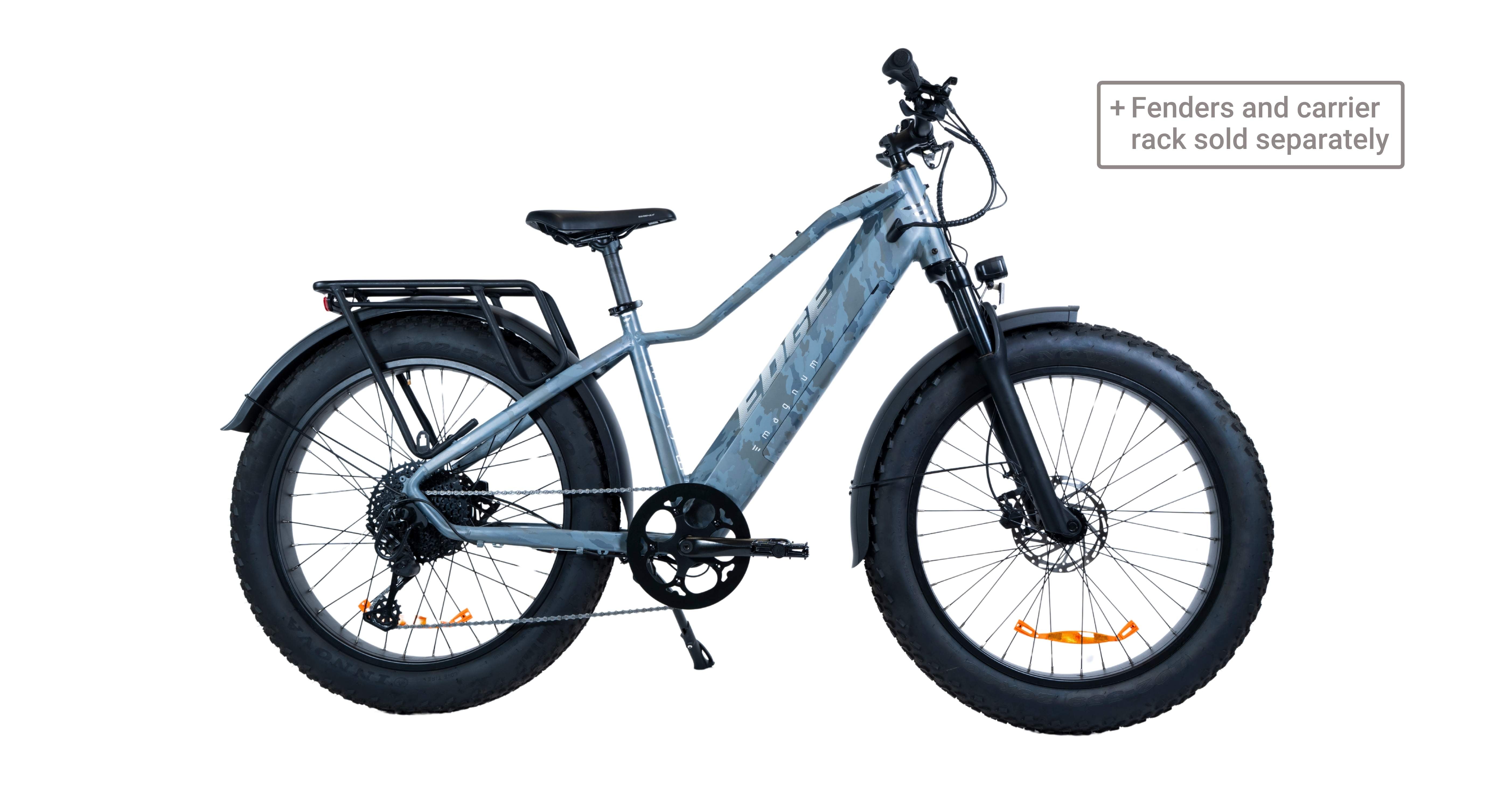

Compatible with rear carrier rack (rack sold separately)Fenders
Compatible with front and rear fenders (fenders sold separately)Accessory Mounts
Built-In Head Tube and Top Tube Accessory Mounts
